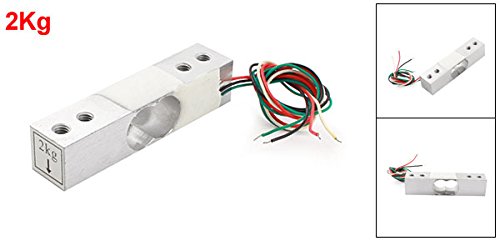

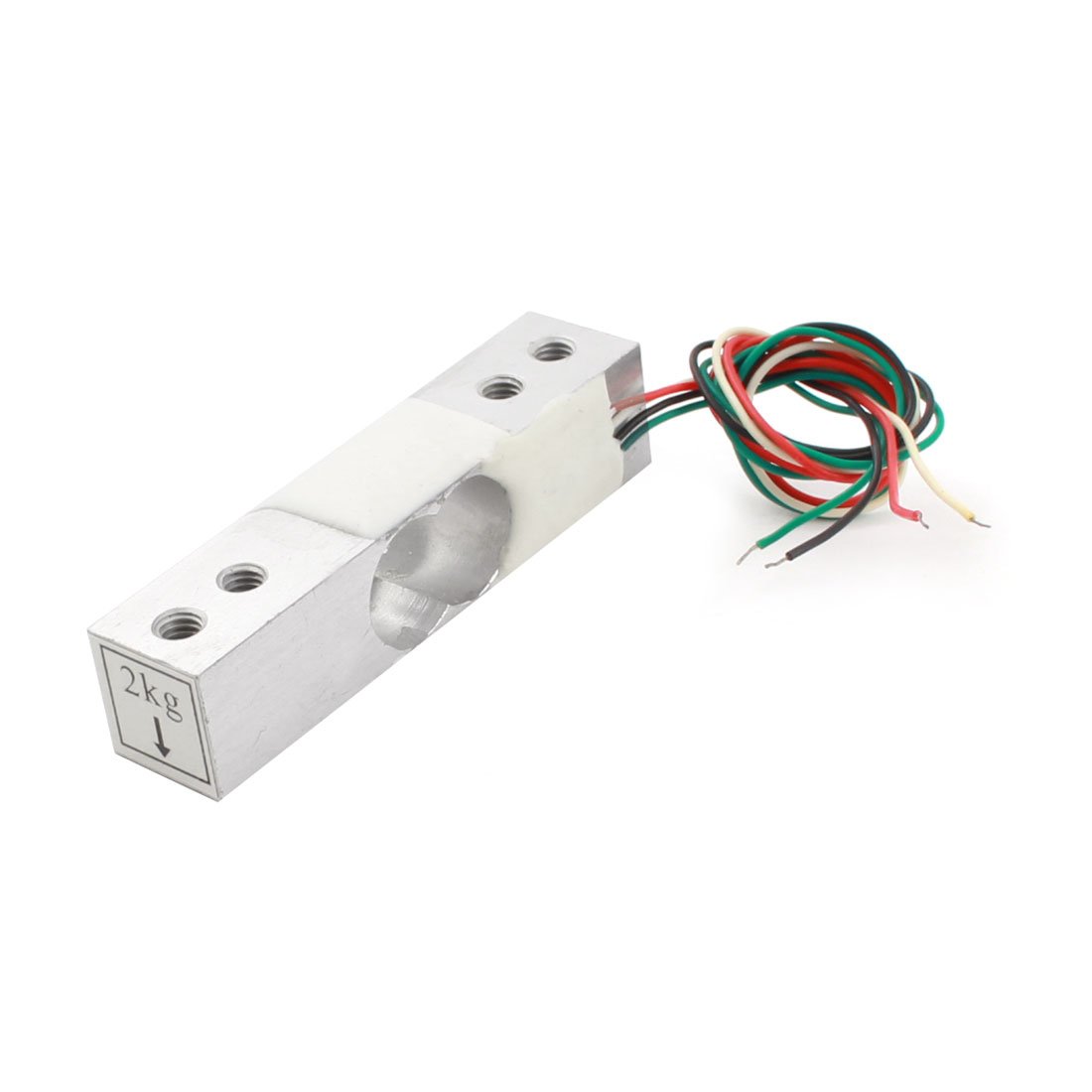

uxcell 2kg Aluminum Alloy Parallel Beam Load Cell - High Precision Sensor for Kitchen Scales, Bathroom Scales & Jewelry Scales | Perfect for Cooking, Weight Tracking & Gem Measurement
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:81355009
Product Description
Notice: The red line connects power positive, and black connects power negative .The green connects signal positive, and white connects signal negative . One end of the sensor through the screw holes fixed and the other end to keep floating. Applied according to label directions direction of gravity. This item is used widely in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices.
Product Features
Product Name Load Cell;Model YZC-136C/2;Rated Load 2Kg /4.4lb;Rated Output 1±0.1mV/V
The surface is anodized to make the product more lustrous and durable.Secondly, the product is protected by silica gel, which can protect against corrosion, moisture and aging.
Widely used for electronic scales and balance material scales, jewelry scales and control system.
Total Size 59 x 12.5 x 12.5mm /2.3" x 0.5" x 0.5"(L*W*T);Fixing Hole Diameter 3.4mm / 0.13";Hole Center Distance 49mm/2", 34mm/1.3";Cable Length 205mm/8''
Material Aluminium Alloy;Color Silver Tone;Weight 21g;Package Content 1 x Load Cell
