Ohaus VX32XW10000L VX Series Heavy Duty Floor Scale - 10,000 lb Capacity, Industrial Weighing Solution for Warehouses, Shipping & Logistics

Product Description

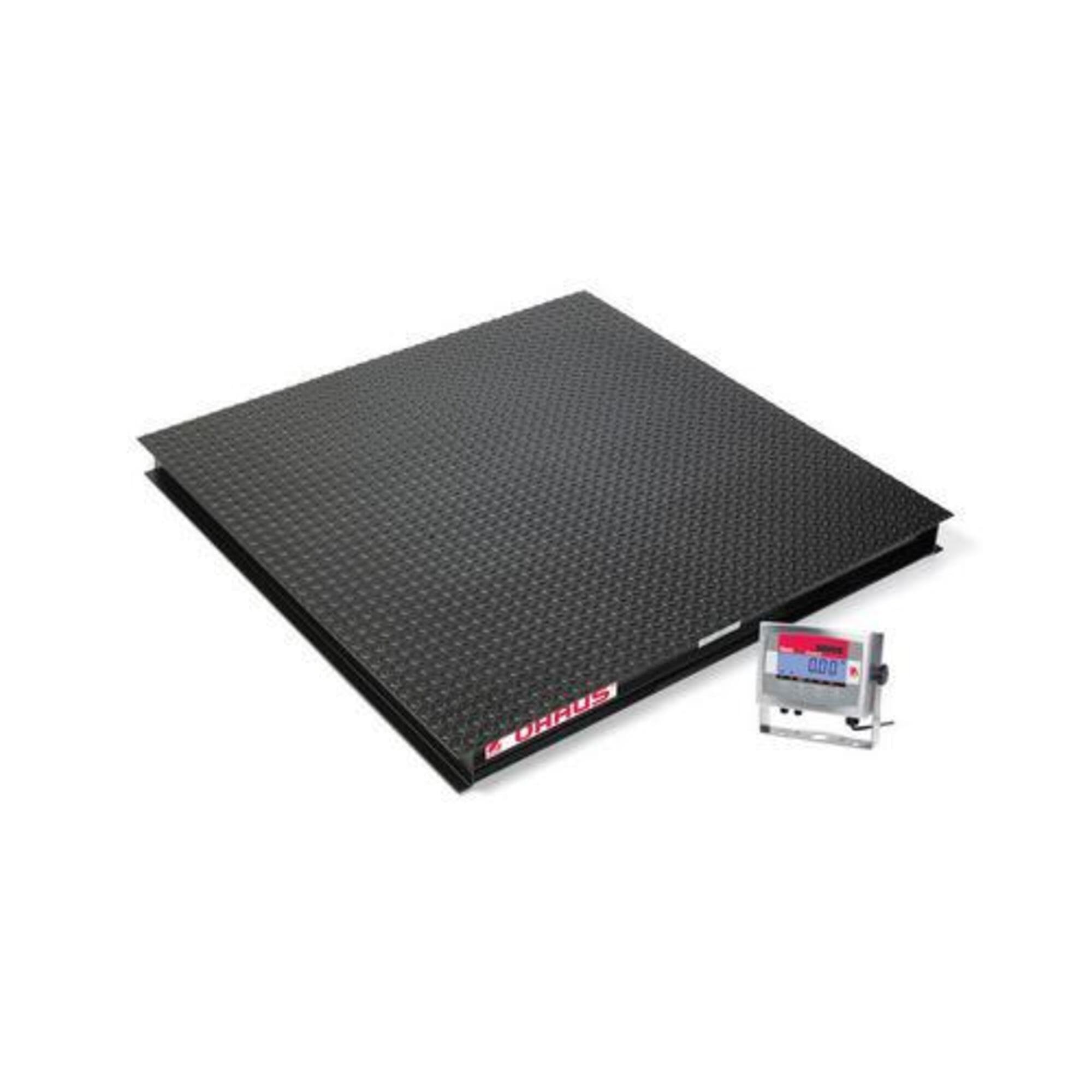

The Ohaus VX32XW10000L VX conventional floor scale has a capacity of 10000 lb. and an accuracy of 2 lb. (also called readability). The durable welded steel platform has structural bracing and includes a tread plate with a raised cross-hatch surface for slip resistance. The four sealed load cells, which are made of nickel-plated alloy steel and rated to IP67 level of protection against dust and short periods of immersion in water, are housed in a plastic junction box built to United States NEMA (National Electrical Manufacturers Association) standards and rated to IP65 against dust and low-pressure water jets. The included T32XW indicator with 304 stainless steel housing has a large backlit display that tilts, for clear readings in either bright or dim lighting conditions. A 25-foot cable allows the T32XW indicator to be placed where it is most readable, out of the way of the platform, and mounted on a table or wall using the integrated bracket.The scale tares and weighs in five different units. Applications include weighing and parts counting for inventory and warehousing needs. This scale is pre-calibrated at the factory and has an internal gravity-correction feature that adjusts the factory calibration to local conditions. The built-in RS232C port on the indicator enables easy connection to a computer or printer, and printing intervals can be set to manual, continuous, on stable weight, or at any user-set interval between one second and 60 minutes. This scale is powered by the included AC adapter or the internal rechargeable battery. The scale is manufactured to ISO 9001:2008 standards, and when used according to manufacturer’s recommendations, is covered by a one-year warranty.Specifications Maximum capacity 10000 lb. Readability 2 lb. Stabilization time 2 seconds Operating temperature range 10 to 40 degrees C Weight of scale platform 437 lb. Units of measurement pound (lb), kilogram (kg), ounce (oz), gram (g), pound and ounce (lb-oz) Indicator power requirement 100-120 V AC / 220-240 V AC, 50-60Hz, or the internal rechargeable sealed battery (included) Indicator dimensions 8.3 x 2.8 x 5.8 inches Weighing platform dimensions (H x W x D) 4.5 x 48 x 48 inches H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Scales or balances are measuring instruments used to determine the mass of an object. Mechanical balances are the simplest type of balance, and use a lever and slide to indicate the measurement. Conventional balances are commonly used in offices, the jewelry industry, and in kitchens, and display results digitally, but are less precise than analytical balances. Analytical balances measure to a high degree of precision and accuracy (0.0001 g or better), and display results digitally. These balances have a cover with doors to prevent dust and airflow from affecting the measurement. Moisture balances analyze moisture content in a material sample, using infrared or halogen heat sources to dry the sample and then calculate the moisture content from the before- and after-drying weight, and display results digitally, on the balance, or transfer the information for display on a computer. Ohaus manufactures scales and balances for laboratory, educational, retail, food, and jewelry applications. The company, which was founded in 1914, is headquartered in Parsippany, NJ.What’s in the Box?Ohaus VX32XW10000L VX standard floor scaleOhaus T32XW indicator(2) foot mounting plates(4) carbon steel feetAC power adapter with 2-meter cordInstructions
